Product Details:
Payment & Shipping Terms:
|
| Brand Name: | KWSK | Warranty: | 6 Month |
|---|---|---|---|
| Part Name: | Reapir Kits | Marketing Type: | New Product 2022 |
| Place Of Origin:: | GUANGZHOU CHINA | Availability: | In Stock |
| Model: | K3V112 | ||
| Highlight: | YN10V00043S111 Excavator Main Pump Parts,SK200-8 Excavator Main Pump Parts,K3V112 Drive Shaft |
||

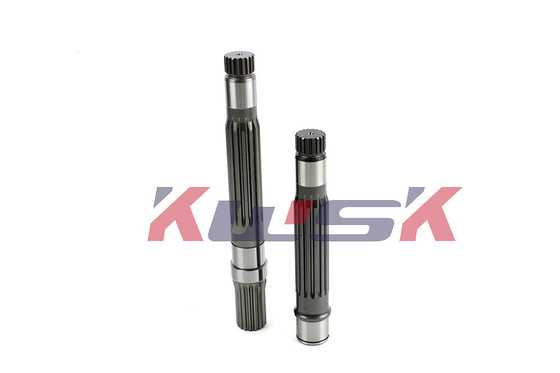

KWSK excavator main pump parts YN10V00043S111 Drive Shaft 17T K3V112 SK200-8 For KOBELCO
|
Name
|
Excavator spare parts
|
|||
|
Material
|
Steel
|
|||
| Model |
K3V112
|
|||
| Use for | KOBELCO | |||
|
Place Of Origin
|
Guangdong,China
|
|||
| Packing | Wooden Box/carton | |||
| part number | YN10V00043S111 XJBN-00077 YN10V00013S113 YN10V00011S124 503518 6906 LC10V00002S123 308E 2437U213S153 LC10V00010S153 2437U213S157 LQ10V00021R100 15875 YN10V00043R100 YN10V00043R200 XJBN-01641 2437U213S30 2953801990 2923330-0795 |

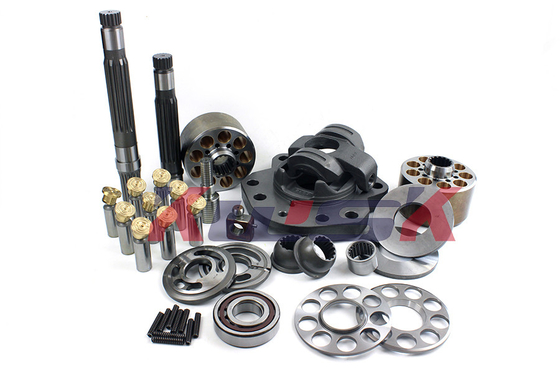

Parts on group (SK200-8/SK210-8)
| Part No | |||||||
| YN10V00043F1 | YN10V00011S124 | 2437U213S153 | 2437U213S251 | YN10V00043S325 | 2441U549S464 | 2437U213S535 | YN10V00020S012 |
| YN10V00043S111 | 2441U723S127 | YN10V00005S156 | 2437U420S261 | 2437U213S401 | 2441U436S469 | YN10V00043S546 | YX10V00003S015 |
| YN10V00013S113 | NSS | 2437U213S157 | YN10V00043S271 | ZS23C08020 | 2441U722S490 | NSS | YT10V00003S710 |
| YN10V00020S116 | NSS | 2441U242S211 | LC10V00010S312 | ZS23C06055 | 2437U213S534 | YN10V00003S702 | YN10V01001S727 |
| LC10V00002S123 | NSS | NSS | NSS | 2441U667S466 | 2437U213S532 | YX10V00003S012 | YN10V00020S015 |
| YT10V00003S708 | ZD85G03500 | ZS91C01000 | ZR16X04000 | YB15V00003S390 | YN10V00043R200 | YN10V00043R100 | |
| YN10V00032S775 | ZN18C16010 | 2437U188S953 | 2441U723S885 | 2437U407S983 | 2437U213S30 | ||
| ZD85P01800 | ZN18C20012 | 2437U213S954 | ZP26D06014 | YN10V00003S011 | 2437U213S530 |
*If you need other excavator hydraulic main pump inner parts, please send us:
1. The nameplate of the pump
2. The phot of the pump
3. Excavator Brand and model
| Pos. | Qty | Parts name | Comments |
| . . | [1] | HYDRAULIC PUMP | SM Assy |
| 111 | [1] | SHAFT | SM |
| 113 | [1] | SHAFT | KOB |
| 116 | [1] | GEAR | KOB |
| 123 | [2] | BEARING | KOB Roller |

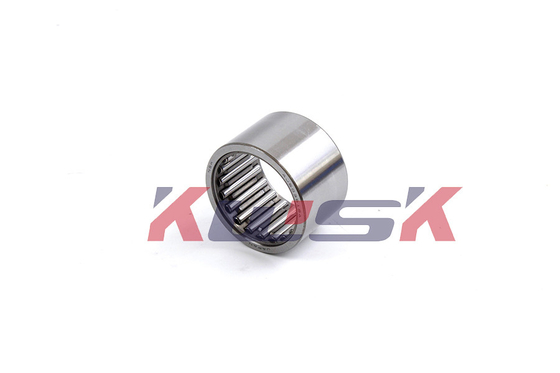

| 124 | [2] | NEEDLE BEARING | KOB Needle |
| 127 | [4] | SPACER | KOB |
| 141 | [2] | NOT SOLD SEPARAT | CON Block, Cylinder |
| 151 | [18] | NOT SOLD SEPARAT | CON Piston |
| 152 | [18] | NOT SOLD SEPARAT | CON Shoe |
| 153 | [2] | PLATE | KOB Superseded by part number: LC10V00010S153 |
| 156 | [2] | BUSHING | KOB |
| 157 | [18] | SPRING | KOB |

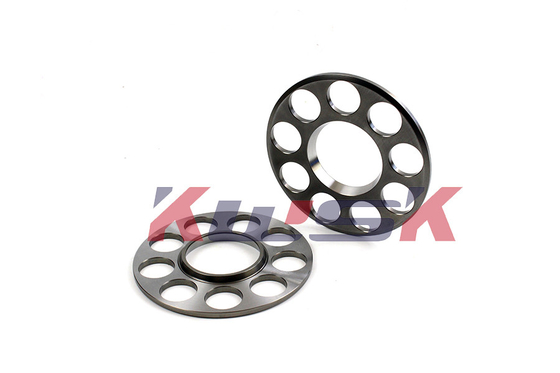

| 211 | [2] | PLATE | KOB Shoe |
| 212 | [2] | NOT SOLD SEPARAT | CON Plate |
| 214 | [2] | NOT SOLD SEPARAT | CON Bushing |
| 251 | [2] | PLATE | KOB Support |
| 261 | [1] | COVER | KOB Seal |
| 271 | [2] | BOX | SM Case |
| 312 | [1] | BLOCK | SM Valve |
| 313 | [1] | NOT SOLD SEPARAT | CON Plate, Valve |
| 314 | [1] | NOT SOLD SEPARAT | CON Plate, Valve |
| 325 | [1] | COVER | SM |
| 401 | [8] | SCREW | KOB Cap |
| 406 | [4] | SCREW,Hex Socket Head, M8 x 20mm | KOB Cap |
| 407 | [3] | CAPSCREW,Hex Socket Head, M6 x 55mm | KOB SCREW Cap |
| 466 | [2] | PLUG | KOB |
| 467 | [2] | PLUG | KOB |
| 468 | [4] | PLUG | KOB |
| 490 | [32] | PLUG | KOB |
| 531 | [2] | NOT SOLD SEPARAT | CON Pin |
| 532 | [2] | PISTON | KOB |
| 534 | [2] | STOP | KOB Stopper |
| 535 | [2] | STOP | KOB Stopper |
| 546 | [2] | SPACER | SM |
| 548 | [2] | NOT SOLD SEPARAT | CON Pin, Feedback |
| 702 | [2] | O-RING | KOB O-ring |
| 710 | [2] | O-RING | KOB |
| 717 | [4] | O-RING,3.1mm Thk x 144.4mm ID, 70 Duro | KOB |
| 724 | [16] | O-RING,1.9mm Thk x 8.8mm ID, 75 Duro | KOB |
| 725 | [9] | O-RING | KOB |
| 727 | [3] | O-RING | KOB O-Ring |
| 728 | [4] | O-RING | KOB |
| 732 | [2] | O-RING | KOB |
| 774 | [1] | OIL SEAL | KOB Superseded by part number: EG10V00004S774 |
| 789 | [2] | RING | KOB Back Up |
| 792 | [2] | RING | KOB Back Up |
| 806 | [2] | NUT | KOB |
| 808 | [2] | NUT | KOB |
| 824 | [2] | RING | KOB Retaining |
| 885 | [2] | PIN | KOB |
| 886 | [4] | PIN | KOB Spring |
| 901 | [2] | BOLT | KOB Eye |
| 953 | [2] | CAP,M10 x 20mm | KOB Setscrew |
| 954 | [2] | SCREW | KOB Setscrew |
| 981 | [1] | PLATE | KOB |
| 983 | [2] | RIVET | KOB Pin |

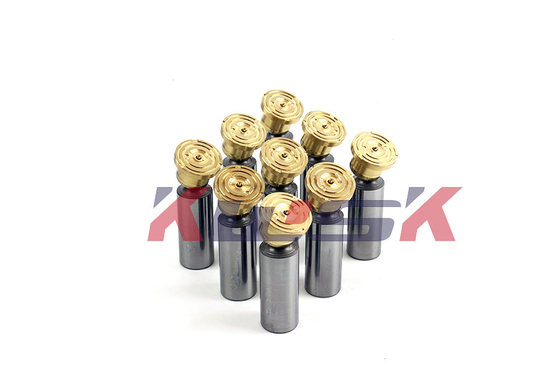

| . . | [1] | PISTON ASSY | KOB Repair Kit Consists Of Ref. 151x9, 152x9 |
| . . | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 141x1, 313x1 |
| . . | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 141x1, 314x1 |
| . . | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 212x1, 214x1 |
| . . | [1] | REPAIR KIT | KOB Repair Kit Consists Of Ref. 531x1, 548x1 |
packing
*We provide packaging in wooden boxes, cartons or other as your requirement,
and will be covered with waterproof membrane.
*We will carefully check the items before packing and sealing,
and will send pictures to customers after packing.
