Product Details:
Payment & Shipping Terms:
|
| Condition:: | New | Brand Name:: | KWSK |
|---|---|---|---|
| Warranty:: | 3-6 Months | Used For:: | Excavator |
| Place Of Origin:: | Guangdong, China | ||
| High Light: | Hyundai Hydraulic Main Pump,K3V112 Hydraulic Main Pump,31N6-10051 Hydraulic Main Pump |
||

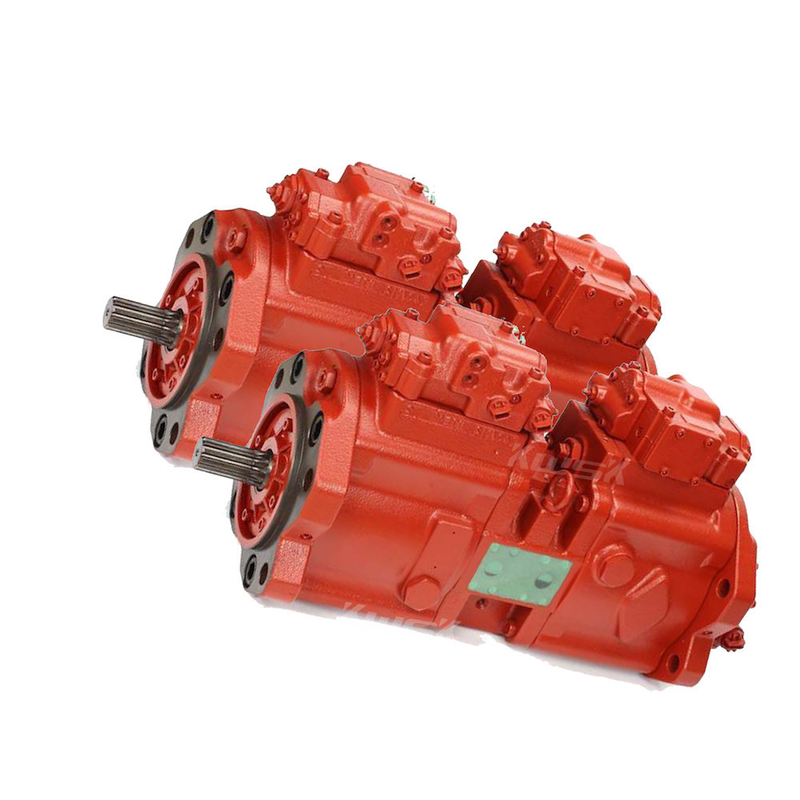

| KWSK Good quality durable K3V112 R210LC-7 31N6-10010 31N6-10050 31N6-10051 Excavator Hydraulic Main Pump For Hyundai Flutek |
NAMEPLATE CODE
| Code | K3V | K5V | ||||||
| Size | 63 | 112 | 140 | 180 | 80 | 140 | 200 | |
| Size | 63 | 112 | 140 | 180 | 80 | 140 | 200 | |
| PRESSURE (kgf/cm²) | RATE | 350 | 350 | |||||
| MAX | 400 | 400 | ||||||
| SPEED | MAX FOR SELF PRIMNG | 2650 | 2360 | 2150 | 1950 | 2460 | 2160 | 1900 |
| MAX | 3250 | 2700 | 2500 | 2300 | 3000 | 2500 | 2200 | |
| MAX INPUT TORQUE OF TANDEM PUMP(kgf.m) | 35 | 60 | 114 | 114 | 54 | 86 | 114 | |
| MAX INPUT TORQUE OF ATTACHD GEAR PUMP WITHPTO(kgf.m) | 13 | 30 | ||||||
| WEIGHT(kgf) | 81 | 125 | 160 | 160 | 81 | 125 | 160 | |
| HYDRAULIC FLUID | TYPE | ANTIWERA HYDRAULIC FLUD | ||||||
| OIL TEM PERATURE RANGE |
-20 ~+95℃
|
|||||||
| OIL VIS COSITY RANGE | 10 ~ 1,000Ccst | |||||||
| FIL TRATION | SUCTION LINE | 80 ~ 150 mesh | ||||||
| RETURN LINE | Nominal 10micron meter | |||||||
Type of Pump
